Product Details:
Payment & Shipping Terms:
|
| Reference Standard: | IEC/EN60350-2:2017 | Material Of The Saucepan: | Stainless Steel (bottom And Wall), Aluminum (lid) |
|---|---|---|---|
| Diameter Of The Saucepan: | φ120mm, φ150mm, φ180mm, φ210mm, φ240mm, φ270mm, φ300mm, φ330mm | Application: | For Measuring The Energy Comsuption Of Hobs |
| Shape: | Cylindrical Without Handles | Shipment: | By DHL, FedEx, UPS Or TNT |
| Highlight: | Hobs Standardized Cookwares,EN 60350-2 Standardized Cookwares,Stainless steel Standardized Cookwares |
||
IEC60350-2 Stainless steel Standardized Cookwares for Measuring the Energy comsuption o f Hobs
1. Introduction

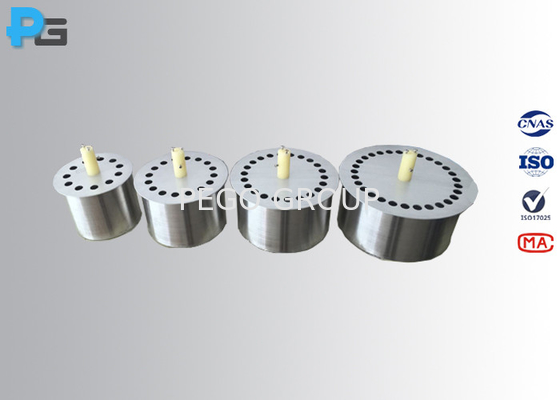

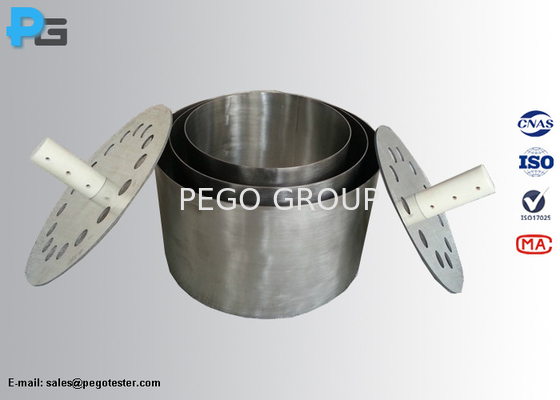

The standardized cookwares are designed according to EN60350-2:2017 for measuring the energy comsuption of hobs. The side wall of the vessel is made of 1.4301 stainless steel (stainless steel AISI 304) with thickness 1mm±0.05mm, the bottom of the vessel is made of 1.4016 stainless steel (stainless steel AISI430) with thickness 6mm±0.05mm, the cookware is cylindrical without handle or protrusions. And the lid is made of aluminum with thickness is 2mm±0.05mm, each hole circle of the lid has a diameter of 16mm±0.1mm, the holes shall be evenly distributed on the hole circle. The lid is flat and can accommodate a temperature sensor in the center.
2. Specification
|
Diameter of the cookware bottom (outside) mm |
Diameter of the lid mm |
Lid hole circle diameter mm |
Number of holes on the circle |
Total cookware height (outside) mm |
Flatness of cookware bottom mm |
Water load g |
Cooking zone size category mm |
Standardised cookware categories |
| 120±0.5 | 130±1 | 80±1 | 7 | 125±0.5 |
≥0 <0.075 |
650 |
≥100 <130 |
A |
| 150±0.5 | 165±1 | 110±1 | 11 | 125±0.5 |
≥0 <0.075 |
1030 |
≥130 <160 |
|
| 180±0.5 | 200±1 | 140±1 | 16 | 125±0.5 |
≥0 <0.075 |
1500 |
≥160 <190 |
B |
| 210±0.5 | 230±1 | 170±1 | 22 | 125±0.5 |
≥0 <0.1 |
2050 |
≥190 <220 |
C |
| 240±0.5 | 265±1 | 200±1 | 29 | 125±0.5 |
≥0 <0.1 |
2700 |
≥220 <250 |
|
| 270±0.5 | 300±1 | 230/210a±1 | 18/18a | 125±0.5 |
≥0 <0.15 |
3420 |
≥250 <280 |
D |
| 300±0.5 | 330±1 | 260/210a±1 | 23/22a | 125±0.5 |
≥0 <0.15 |
4240 |
≥280 <310 |
|
| 330±0.5 | 365±1 | 290/270a±1 | 27/27a | 125±0.5 |
≥0 <0.15 |
5140 |
≥310 ≤330 |
|
| a Number of holes are arranged on two hole circles | ||||||||
3. Frequently asked questions
1). What is the material of the standardized cookwares?
Pego: ide wall of the vessel is made of 1.4301 stainless steel (stainless steel AISI 304), the bottom of the vessel is made of 1.4016 stainless steel (stainless steel AISI430), the lid is made of aluminum.
2). Can I buy one size?
Pego: Yes, each size of standardized cookwares can be purchased independently.
3). Can the cookwares come with calibration certificates?
Pego: Yes, the cookwares can come withe calibration certificates issued by an ISO17025 authorized lab, the calibration cost is charged separately.
4). Will the cookwares come with temperature sensor holders?
Pego: Yes, each cookware will configure with a temperature senor holder.
